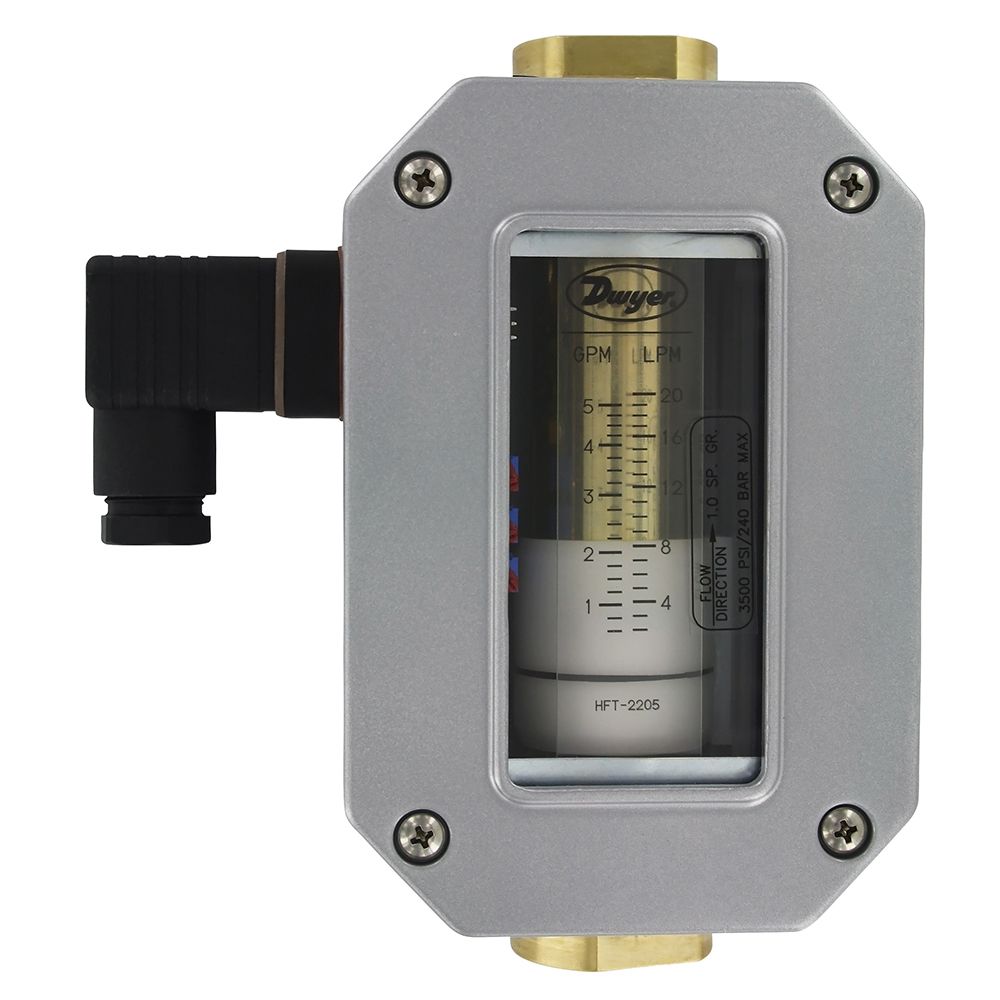

Dwyer Instruments HFT-2550

The Series HFT combines a direct reading HF flowmeter with electronics to provide a proportional analog output of 4-20 mA, 0-5 and 1-5 VDC. Use the output to drive data acquisition devices, meters or analog input cards. The entire assembly is housed in a rugged cast aluminum NEMA 4X enclosure. The unit can be installed in outdoor applications or harsh environments where liquid tight seals are required. The flow transmitter does not require input or output straight plumbing, and can be mounted in any orientation.

• Range 5-50 GPM (19-189 LPM) water, 1-1/2 female NPT
